1、 Functional Features

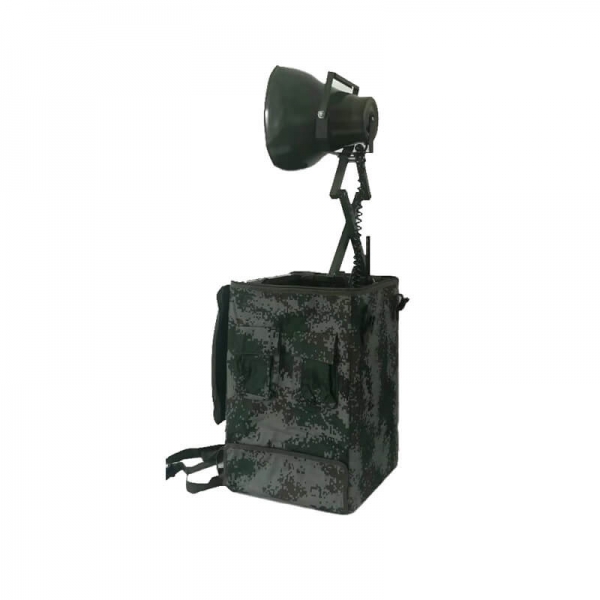

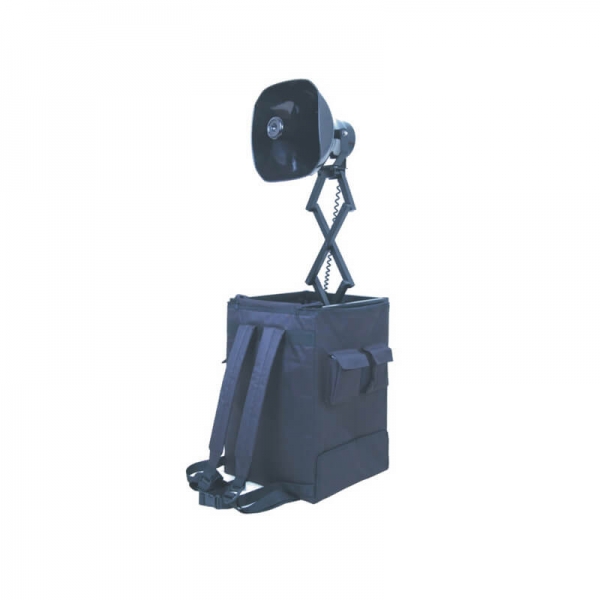

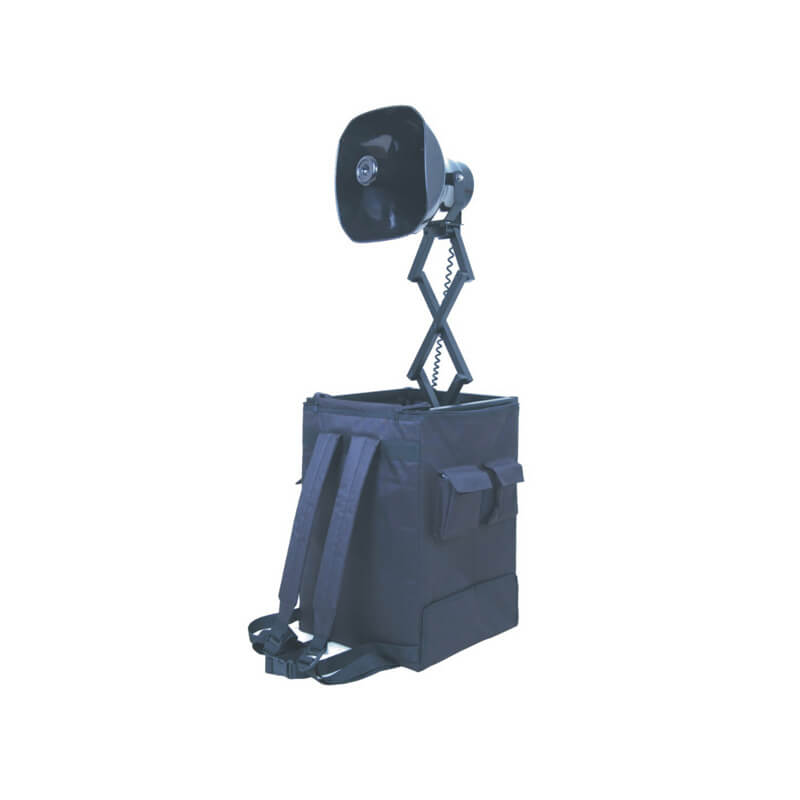

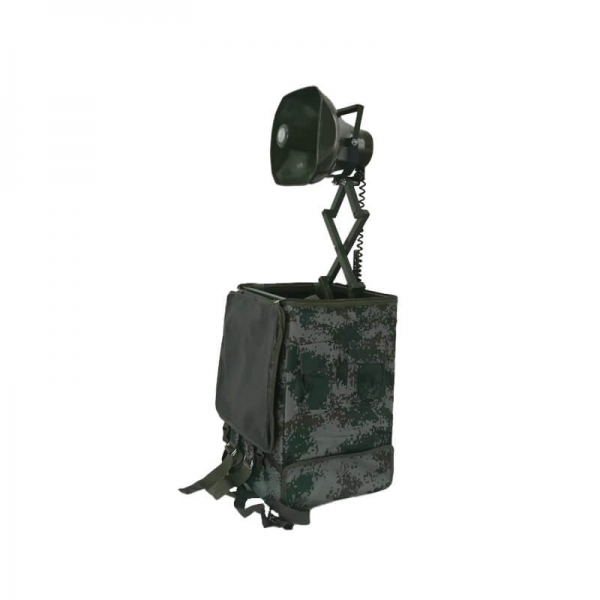

The J101T backpack remote emergency broadcasting system is an independent amplification system that includes an independent power supply, amplifier, speaker, microphone, etc. It is powered by a battery DC and can be converted from DC to D. Digital power amplification, high stability, high reliability, and high fidelity.
Outdoor waterproof speaker, strong pointing, high sound pressure, high clarity, impact resistance, long transmission distance, small system size, light weight, integrated structure, easy to carry, easy to install, operate, converge, and store. It is suitable for various outdoor sound transmission purposes when there is no mains power supply, such as police exercises, case handling, government, schools, enterprises and other natural disasters and emergency situations such as earthquake resistance, flood control, fire protection, etc. The J101T back frame is a telescopic structure
2、 Functional Features
1. The J101T backpack remote emergency broadcasting system is an independent amplification system that includes an independent power supply, amplifier, speaker, microphone, and other components.
2. DC power supply from battery, DC-DC conversion; Lithium batteries can be customized according to requirements.
3. Digital power amplification, high stability, high reliability, and high fidelity.
4. YH69-2M outdoor waterproof speaker is selected, with strong pointing, high sound pressure, high definition, impact resistance, and a long transmission distance of up to 1.5KM.
5. The system has a small volume, light weight, integrated structure, easy to carry, and convenient and fast installation, operation, convergence, and storage.
6. Equipped with Bluetooth and radio function

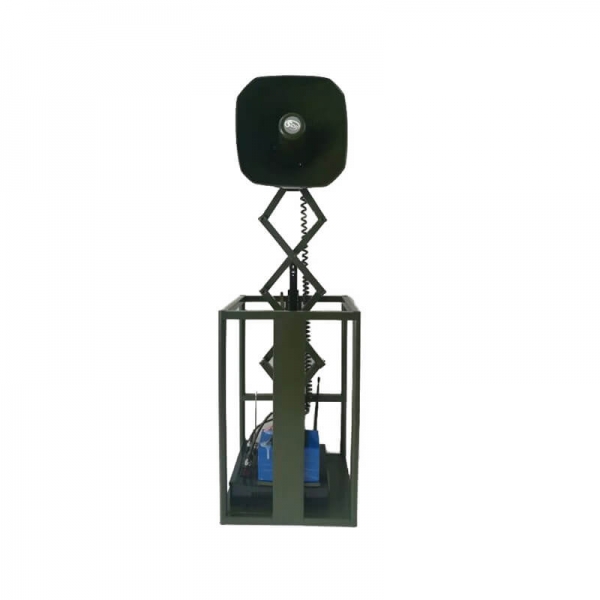

7. The ZJSC-JTS01 back frame is a telescopic structure.
3、 Configuration Introduction
1. Power amplifier power: 2 × 180W/8 Ω
2. Frequency response: 20Hz-20KHz ± 1dB
3. Line input: 0dB
4. FM radio frequency range: 88MHz-108MHz
5. Microphone input: -30dB
6. Wireless microphone: U segment 600MHz-800MHz
7. USB and SD card input Mp3 format
8. Recording function: Recording and playback
9. Speaker sensitivity: 114dB ± 1dB
10. Rated power .69W(8)
11. Maximum power: 138w
12. Speaker size: 270 * 270 * 310mm
13. Power supply: Lead acid (lithium) battery 14AH/12V
14. The system can work continuously for 3-4 hours
15. System size: 530 * 340 * 340mm
16. System weight: approximately 10kg
