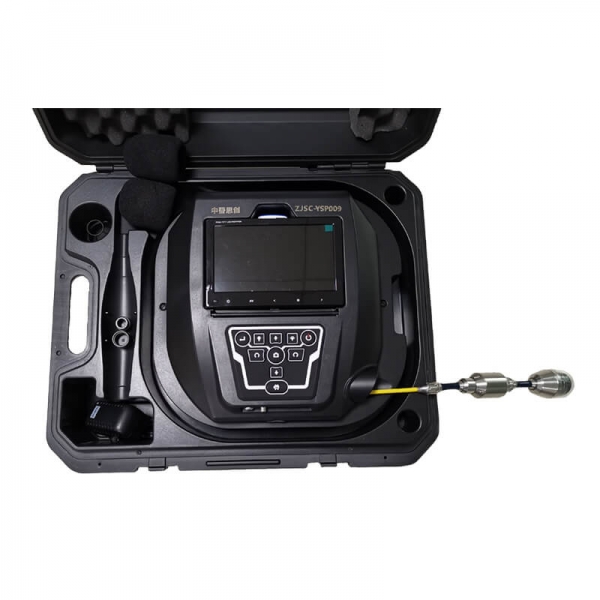

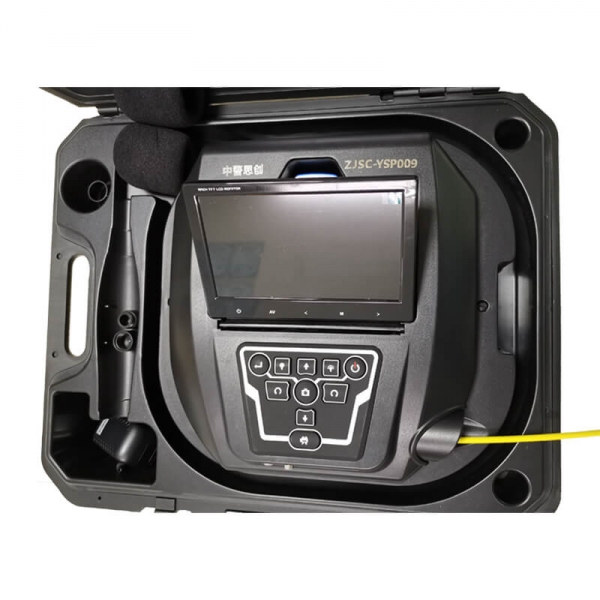

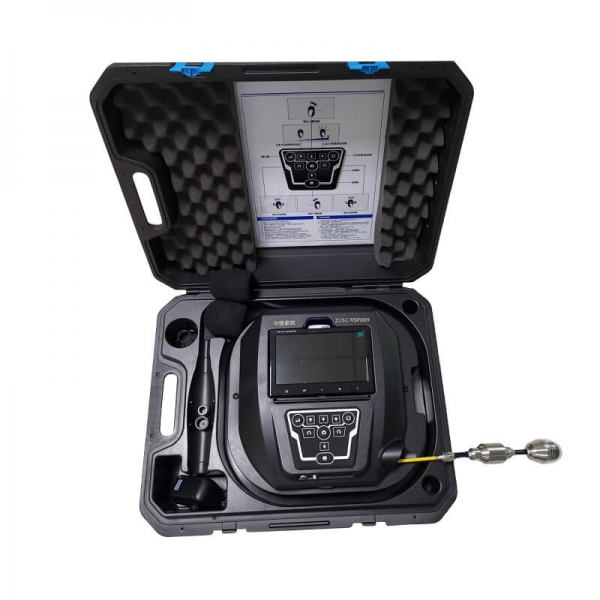

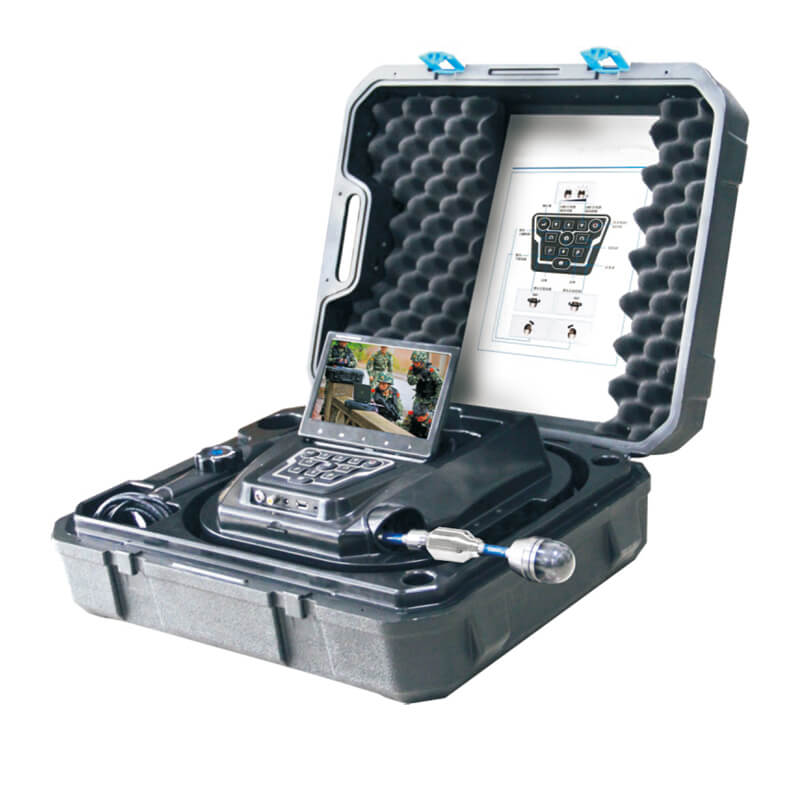

ZJSC-YSP009 audio and video life detector

1. Product introduction:
The audio and video life detector is a kind of emergency auxiliary rescue equipment for both land and water use. It is mainly used for sudden natural disasters such as earthquakes, mudslides, floods, building collapses, etc.; people and property are trapped underground; areas where rescuers cannot reach immediately, etc. We can use the ZJSC-YSP009 audio and video search and rescue instrument to quickly visually inspect the suspicious target area, and can initiate a search call and detect the suspicious target area to answer the trapped person’s groaning, shouting, crawling, beating, scoring, etc. Audio waves and vibration waves provide help for rescuers to quickly and accurately grasp the real situation of the trapped area.

2. Application areas:

       It is suitable for rescue work after fire fighting, earthquake, bombing, and explosion in buildings (caused by gas or other intentions). Fire, earthquake, civil defense, maritime affairs, safety supervision, armed police, public security, etc.

3. Product advantages:
The video probe can be rotated 360° through the rear electronic key, ≥180°rotation; outer diameter ≤40mm; the probe is fully sealed, with a waterproof level ≥IP67, the probe cover can be replaced, the probe body can be bent at 90°; the configuration probe is high Bright white light imaging probe.

The omni-directional audio vibration detection sensor is placed at the back of the video probe and consists of a miniature omni-directional high-sensitivity pickup and a high-power vibration speaker.

Using ≥7’ color widescreen LCD monitor, the monitor can be fixed or hand-held. The operator can realize real-time detection of the internal sound of the suspicious target area and the first dialogue with the survivor through the microphone and stereo headset.

The length of the detection line is ≥30m, equipped with a white light rotating lens, and the probe entry distance can be accurately displayed on the screen through the internal sensor of the system.

4. Product parameters:
TFT display: 7"/16:9;

Size: 176X114X32mm

Video output signal: CVBS;

Type: Color rotating lens chip 1/3" color CCD;

Sensitivity: 0.5Lux; Lens: f=2.0mm, F=2.4;

Field of view: 120°, light source: LED light;

Waterproof rating: IP67;

Storage capacity: about 1 hour video/GB;

Resolution: 640×480 (VGA)/maximum 30fps;

Format: ASF (MPEG4).

Weight: 10KG;
