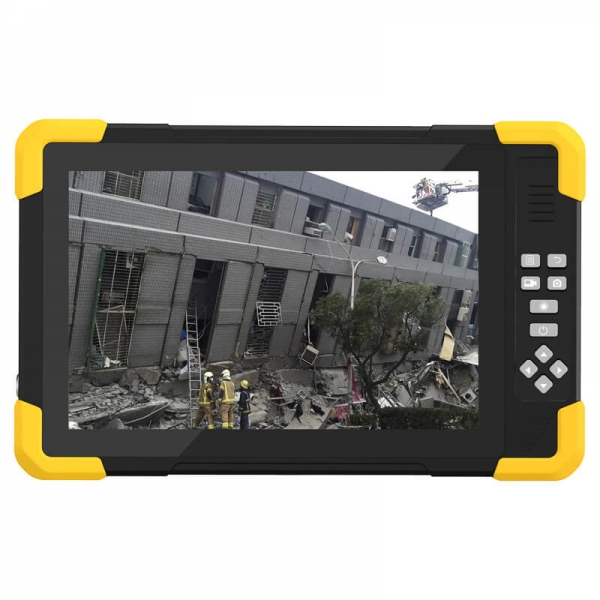

2. Host:
v Host computer with a display screen of ≥10 inches and a 4K display; video recording support
v 10.1-inch display screen, display resolution: 1280*800Pix;
Video resolution (16:9): 3840x2160, touch screen structure and technology: In-cell, original
v Camera resolution: 1200W; screen color, brightness, and contrast adjustable.
v Supports functions such as video recording, photo taking, playback, 10x zoom, camera direction adjustment, and brightness adjustment of the camera light
The v monitor is equipped with a built-in 6200mAh rechargeable and detachable lithium battery; it can operate continuously for over 5 hours on a single charge
v 128GB TF card, with wifi function.
3. Camera:

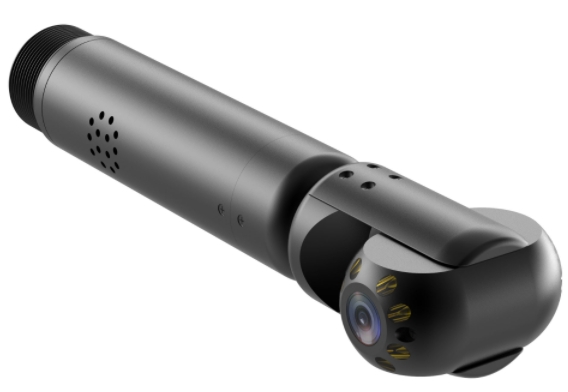

(1) 360 two-way voice intercom probe
v 5 million Sony HD two-way intercom voice camera (2560*1944),
v 360-degree electric rotation, horizontal 360-degree rotation, vertical: 180°
v 12 invisible IR940 infrared lights, low illumination, good night vision.
v Camera size: 39*153mm, weight: 325g,
v High-definition call with a sound pickup range of 300 square meters;
.jpg)

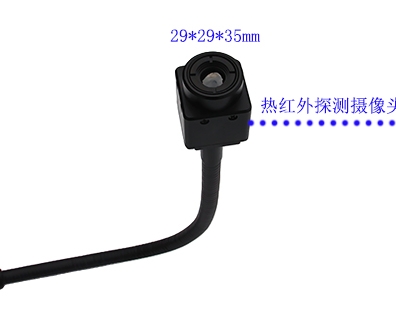

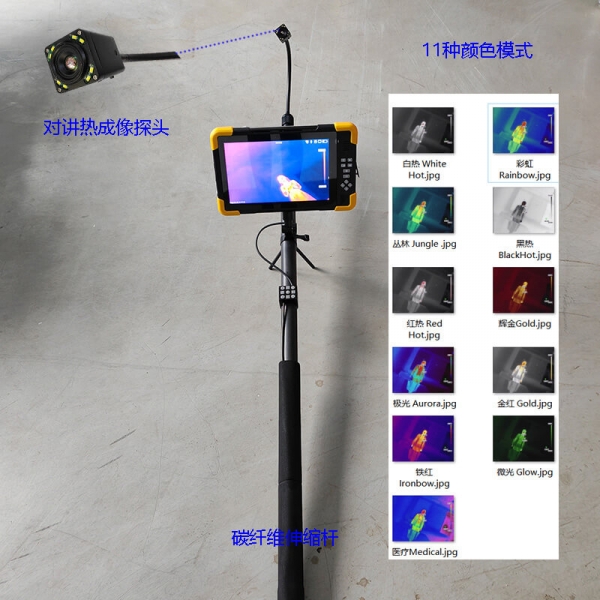

(2) Thermal infrared probe
v 6 Thermal infrared probe, thermal infrared flexible tube camera:
Infrared image resolution: 384*288, thermal infrared camera size: 29*29*35mm
v Focal length: Automatically adjusts for clear video images (both macro and far-distance detection are possible).
v Detector type: uncooled infrared focal plane detector
Temperature measurement range: -20℃ to 450℃
v Test measurement accuracy: ±2℃ or ±2%
v Temperature compensation: step 0.1℃
v Pixel spacing: 12μm
v Noise equivalent temperature difference: ≤50mk
v Frame rate: 50Hz/25Hz
v Image mirroring: up-down, left-right, diagonal
v Polarity: white heat
v Image processing: digital filtering for noise reduction, digital detail enhancement
.jpg)

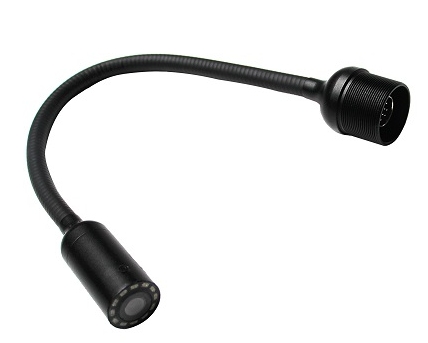

(3) Waterproof hose probe
v 5 million Sony HD waterproof camera (2560*1944),
v 12 invisible IR940 infrared lights, low illumination, good night vision.
v Camera size: 23*47mm,
v IP68 waterproof rating

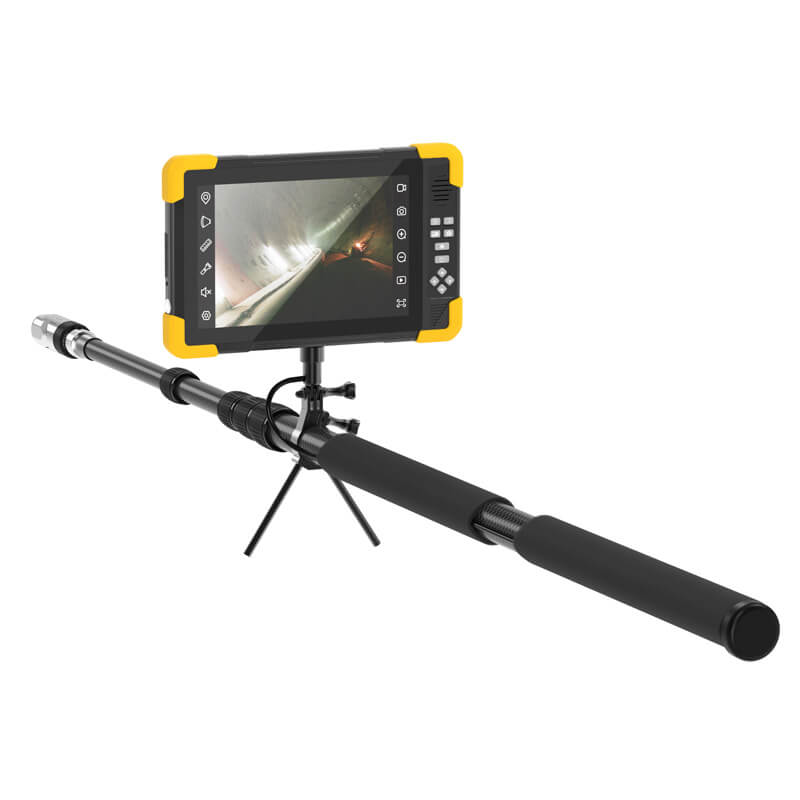

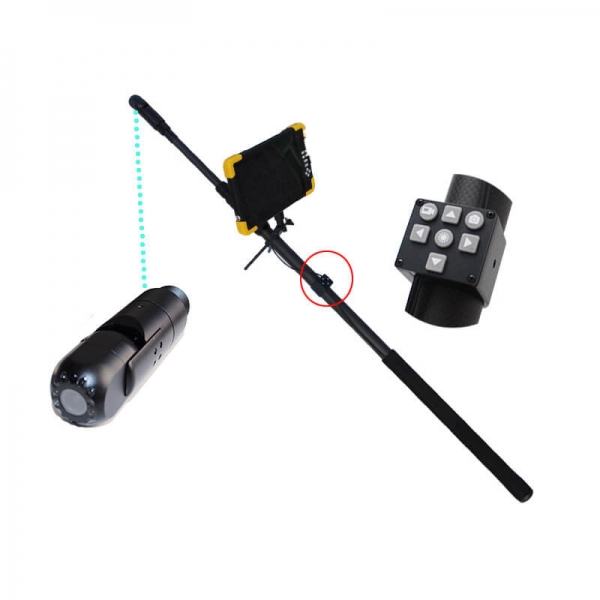

3. Dimensions and weight of the individual carbon fiber rod
The v 7-button telescopic rod camera has a retracted length of only 1.2 meters and an extended length of 5.02 meters; it weighs 1.47 KG
v Material of telescopic rod: carbon fiber;

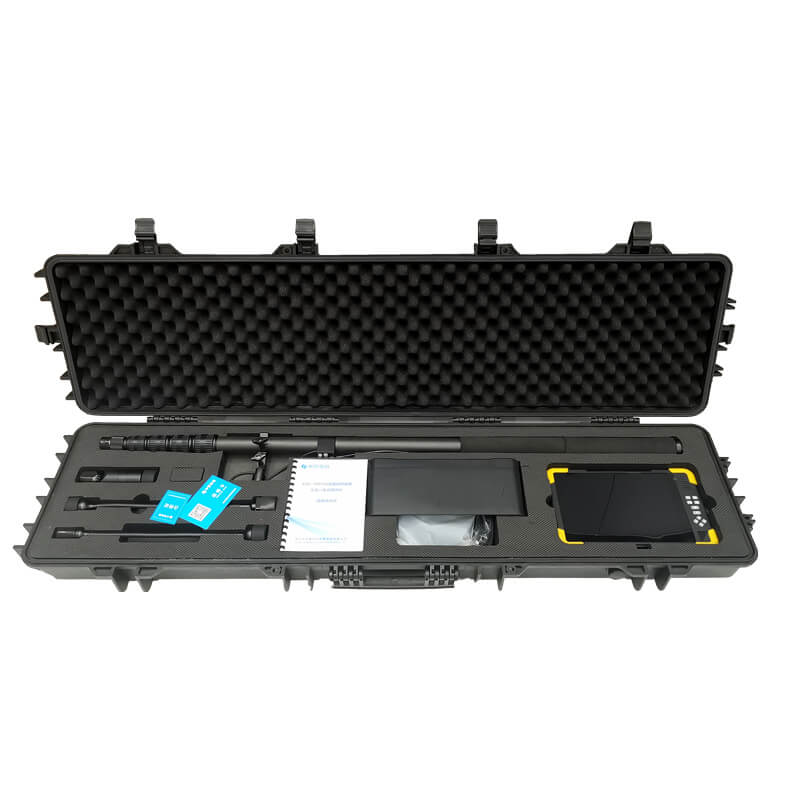

4. Packaging box: professional black engineering box
Packaging box size: 138.2*17.8*38.6/cm

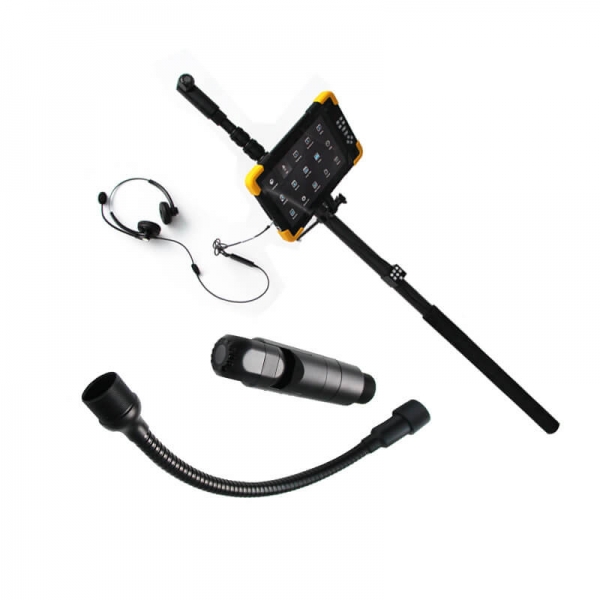

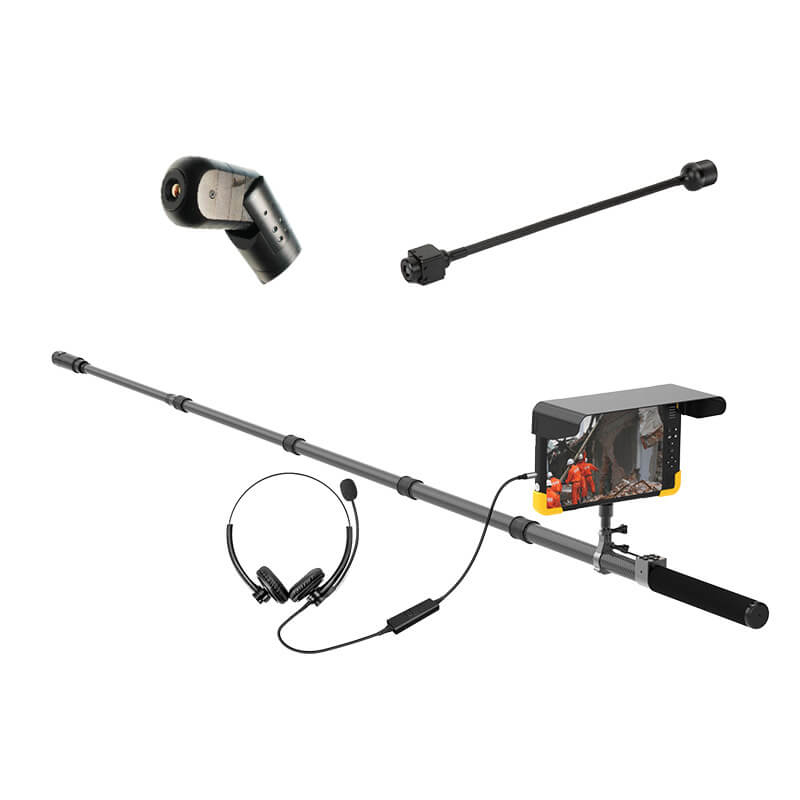

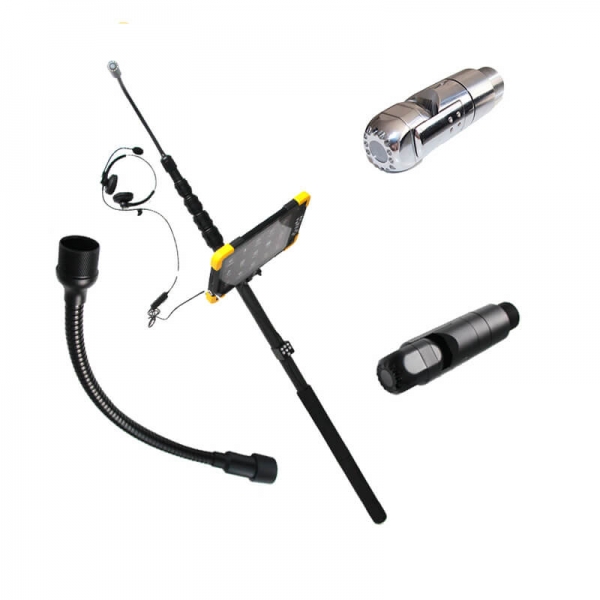

5. List of product accessories
v 10.1-inch monitor with sunshade *1
v 5m carbon fiber pole *1
v 360 two-way intercom probe *1
v Thermal imaging infrared probe *1
v Waterproof hose probe *1
V earphones * 1
HDMI cable * 1
USB cable * 1
v Shoulder strap *1
V power supply * 1
v Instruction manual *1
v Warranty card/certificate of conformity *1
v 1 black engineering case
