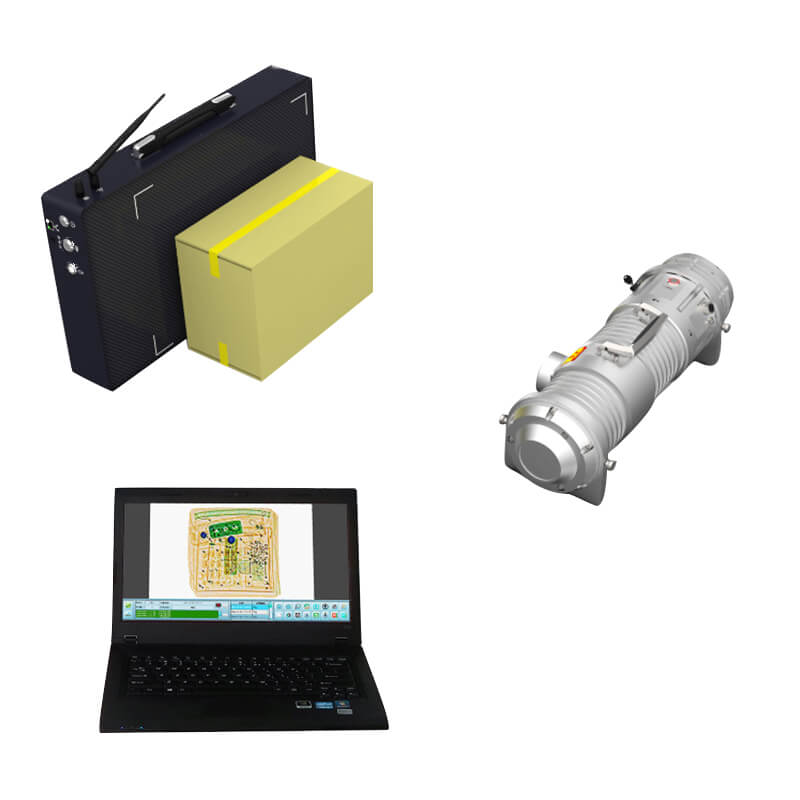

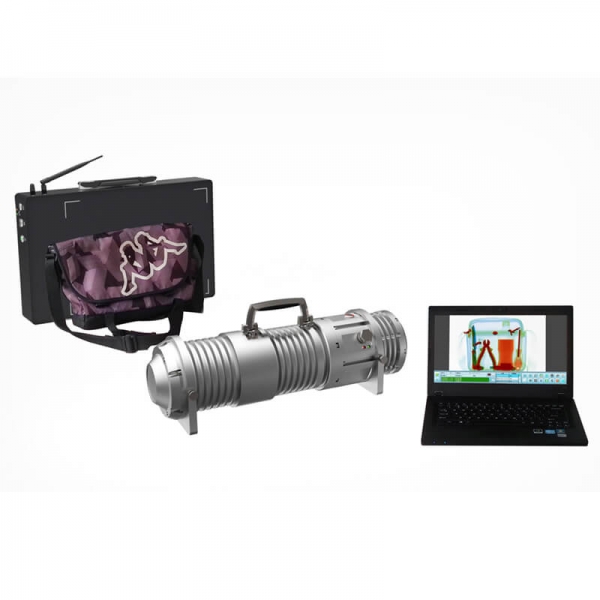

ZJSC-9S portable X-ray safety inspection equipment

1. Product introduction:
The portable X-ray security inspection equipment is an internationally leading new type of split portable X-ray machine developed and produced by our company. This equipment adopts XRayMobile, a high-performance data acquisition and image processing system independently developed by our company, and cooperates with high-performance X-ray generation sources and The imported ultra-sensitive linear line scan detector has strong penetrating power and clear imaging. It can quickly and effectively check out dangerous goods such as weapons, drugs, explosives and other prohibited items hidden in packages, vehicles, daily and office supplies. Provide fast and accurate security inspection methods for relevant departments such as anti-terrorism, anti-explosive, investigation, anti-smuggling, anti-narcotics and article identification.

2. Product advantages:
Ultra-clear imaging: Ultra-clear dual-energy imaging can effectively distinguish inorganic substances, organic substances, and mixtures, and make up for the defect that the integrated portable X-ray machine cannot distinguish the material of the item. The portable X-ray machine has 200 times higher image contrast.
Super penetration: It can penetrate 60mm aluminum plate and 6mm steel plate, and its penetration force is more than 6 times that of the integrated portable X-ray machine.
Large field of view: The size of the scanning area can reach 420 * 300mm, and customized services can be provided on request. The field of view is 3-15 times the size of the integrated portable X-ray machine.
Wireless connection: The devices communicate with each other wirelessly, without any other interference. They are quickly assembled and deployed on site, and are flexible and flexible, which effectively guarantees the safety and concealment of the inspectors. The longest control distance can reach more than 30M.

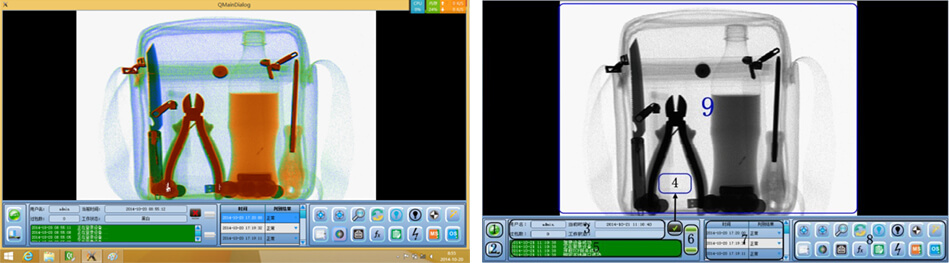

Third, the detection effect diagram:
X-ray machine renderings
Four, technical indicators:
1. X-ray source quality: 14Kg (including battery)
2. X-ray source size: L518xW182xH170 mm
Detection box size: L553 * W85 * H276 mm
Penetrating force: 60mm aluminum plate, 6mm steel plate
3. Gray level: the world‘s leading 16bit gray level, with the highest level of sense (65536: 1)
4. Spatial resolution: Φ0.101mm metal wire
Leakage radiation: 1. 1m away from the X-ray radiation window: less than 7μGy / h
                  2. 50mm away from the X-ray radiation window: less than 120μGy / h
1. Stray radiation: the working position is 20m behind the ray source. When X-ray radiation, the stray radiation at the working position: less than 8μGy / h
2. Radiation output: the radiation output is less than 45μGy / s
3. Wireless wifi transmission distance: more than 30 meters
4. Working temperature: -15 ～ 50 ℃;
5. Working humidity: ≤85%;
6. Working atmospheric pressure range: 86 ～ 106KPa

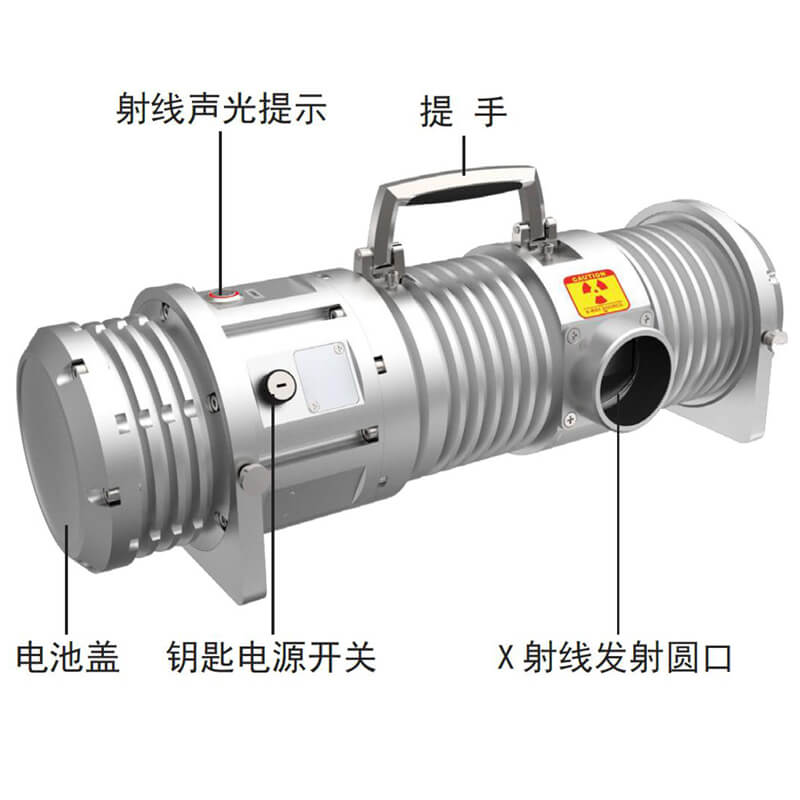

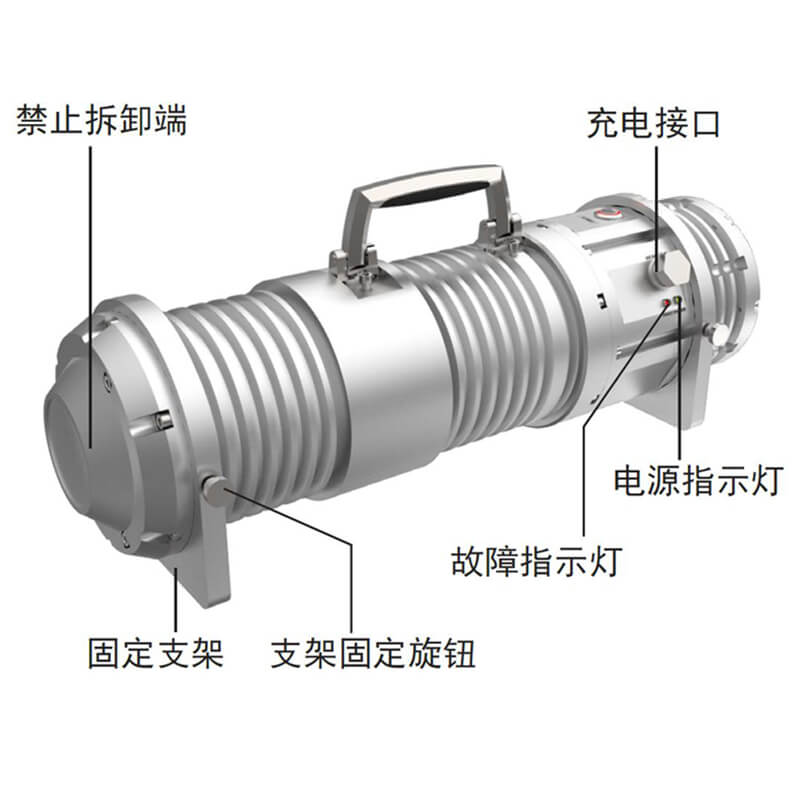

5. Portable X-ray source:
1. Tube voltage: 80Kv-120Kv continuously adjustable.
Tube current: 0.5mA-1mA continuously adjustable.
2. Power supply: AC power supply 110V or 220V (built-in nickel metal hydride battery).
Power supply: ultra-large capacity lithium battery, normal use for more than 4 hours.
3. Light source power: 0.12KVA.
4. Cooling method: oil cooling.
5. Can be connected to 220V AC power. 24 hours of continuous work.

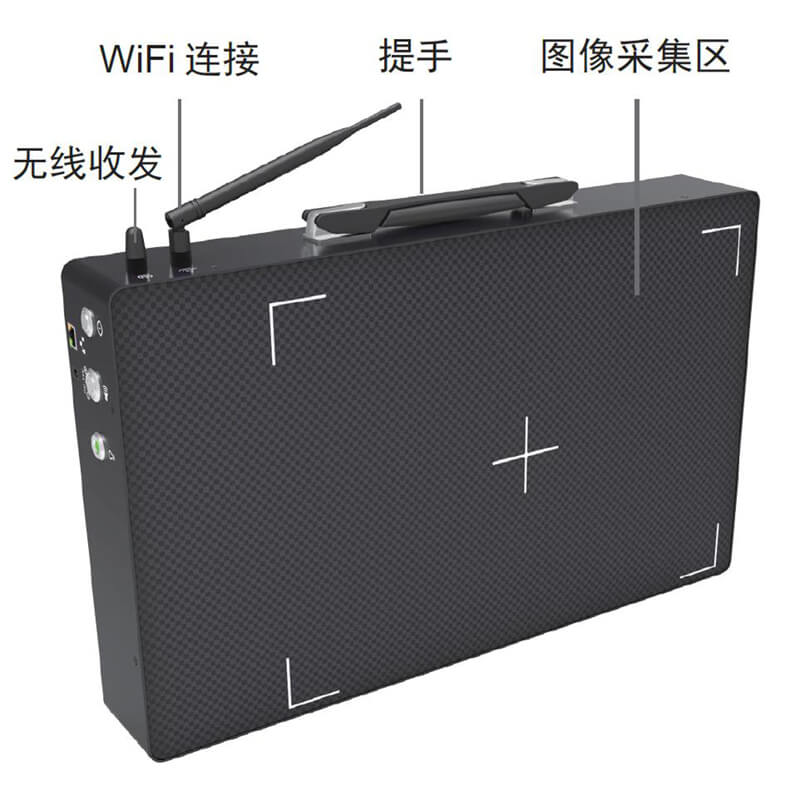

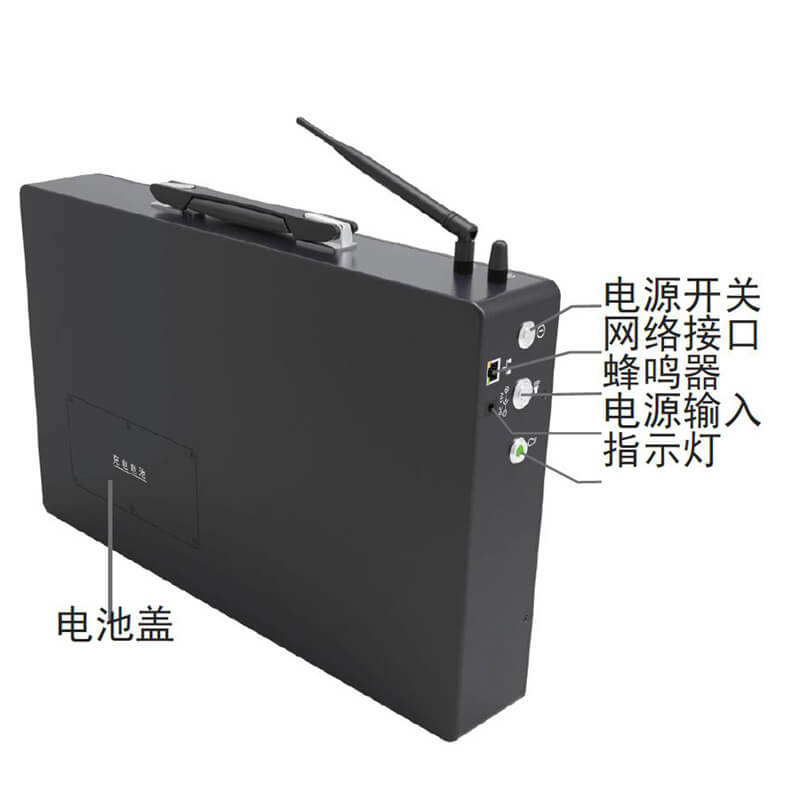

6. Portable X-ray machine detection box:
Motor speed: 3-10 seconds continuously adjustable.
Detector size: 0.8mm CsI crystal line scan detector, truly restore the inspected item.
Gray level: The world‘s leading 16bit gray level, with the highest level of sense (65536: 1).
Body size: L553 * W85 * H376 mm.
Scanning area: 420 * 300mm.
Power: 10W.
Power supply: ultra-large capacity endurance lithium battery with a capacity of not less than 6600mA, which can continuously detect 400 bags.


7. Laptop:
Computer configuration: Intel Core i5 processor; memory capacity 4G; hard disk capacity 500G; built-in DVD-RW burning optical drive; 14.1 "TFT LCD screen, 1G discrete graphics.
