Russia imported RQ-IV radar life detector

1. Product introduction:
The ground penetrating radar (GPR) technology is used to locate key areas on the disaster site with ground penetrating sensors. Through wireless transmission, the GPR sensor and the tablet computer are automatically paired and continuously communicated to obtain the specific location of the target.

2. Product advantages:
Realize multi-target detection. It can display multiple targets in different modes, including moving, breathing and other vital signs.

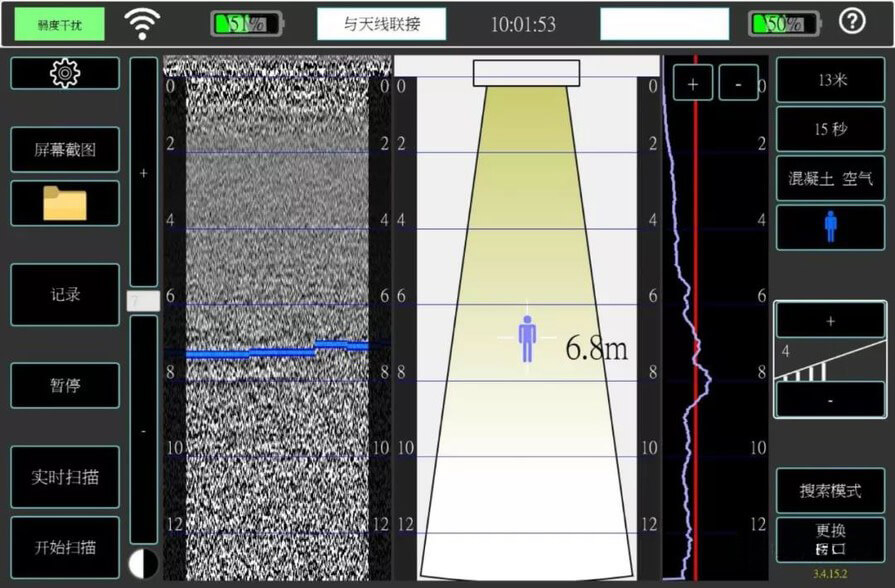

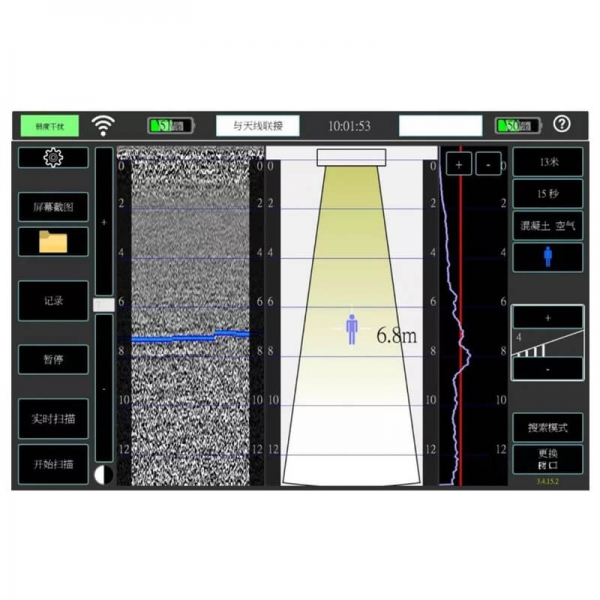

There are three search and rescue modes that are displayed on the same interface, namely simple mode, waveform graph mode, and signal ripple display mode, which confirm each other, improve search and rescue accuracy and eliminate false signals.

Real-time monitoring and locking of the final search and rescue target.

Discover the surrounding anti-interference strength in real time, remind the operator to adjust the sensitivity parameters, and reduce false signals.

High sensitivity, long detection distance, high signal processing accuracy, can detect the weak pulse and light breathing of survivors buried in the ruins.

The screen is large and can be touched, one-button switch, and all the parameters can be selected in one interface with a few taps with a finger.

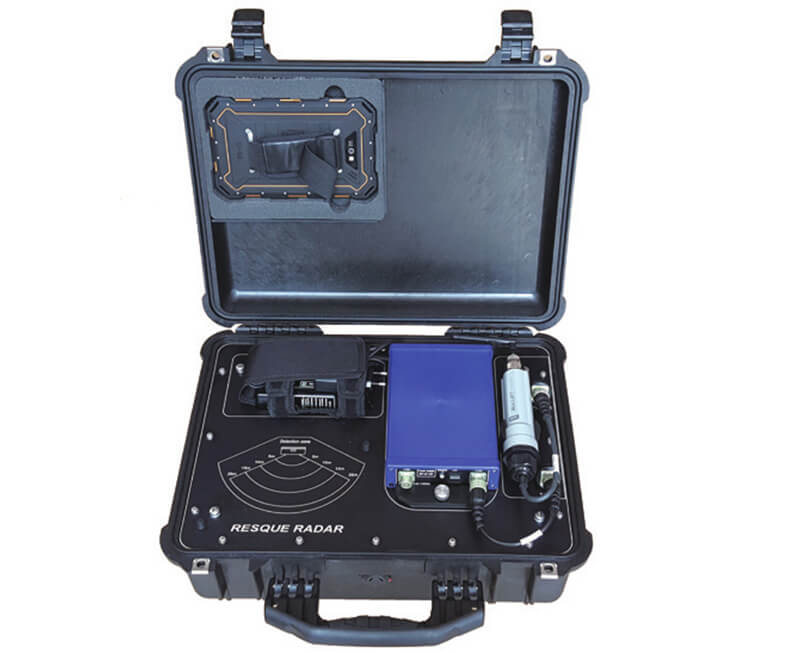

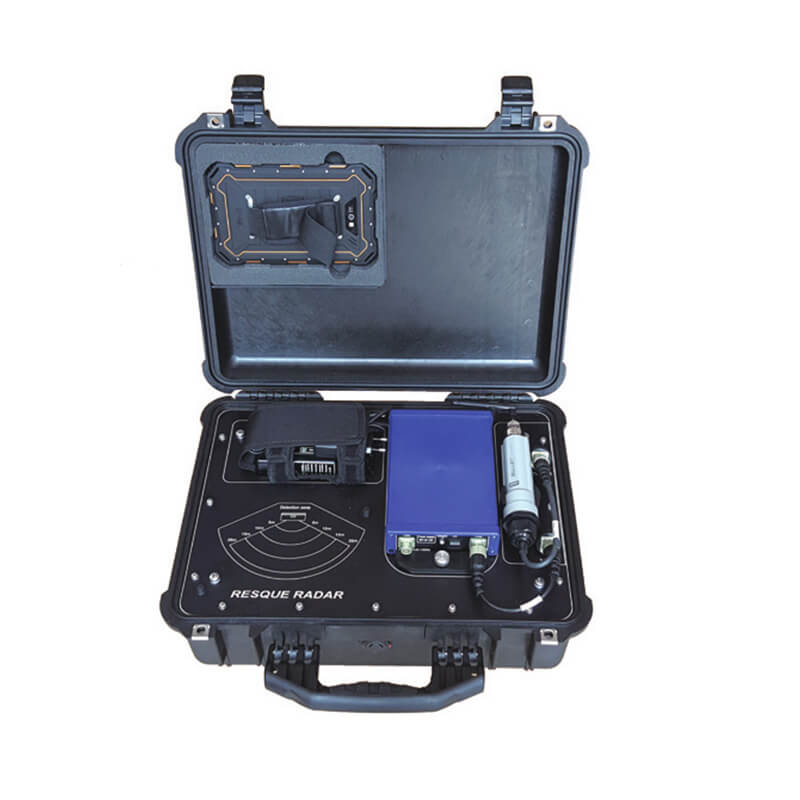

The design is light and handy, all parts are integrated, it is very convenient to carry by one person, suitable for rescue.

Computer operating system Android 6.0, fast processing speed, 16G memory, you can directly insert the U disk into the USB and press the export button to easily complete the data transfer.

All stored data are stored in chronological order, which is convenient for future research and analysis.

The wireless connection method is wireless access point, with long wireless transmission distance and strong anti-interference ability

3. Product parameters:
Radar type: launch 400 MHz ultra-wideband pulse radar

Detection angle: ≥ ±60° (120° cone for detection)

Detection area: 4710 cubic feet (133 cubic meters/3 minutes)

Ruins detection distance ≥ 10 meters

Judgment method: display breathing and movement symbols

Machine size: 49×39×20cm

Weight≤9.5kg

Radar battery: Built-in rechargeable lithium battery

Power consumption: 6W (radiation standard is within a safe range, harmless to humans)

Use time ≥10 hours

Detection distance: 3 meters, 7 meters, 15 meters, 30 meters can be selected

Detection material: air, snow, rubble, mud can be selected

Environment temperature: -30℃—50℃

Cycle time: 15, 30, 60, 180 seconds can be selected

Wireless distance: 100 meters
