1. Product Features:

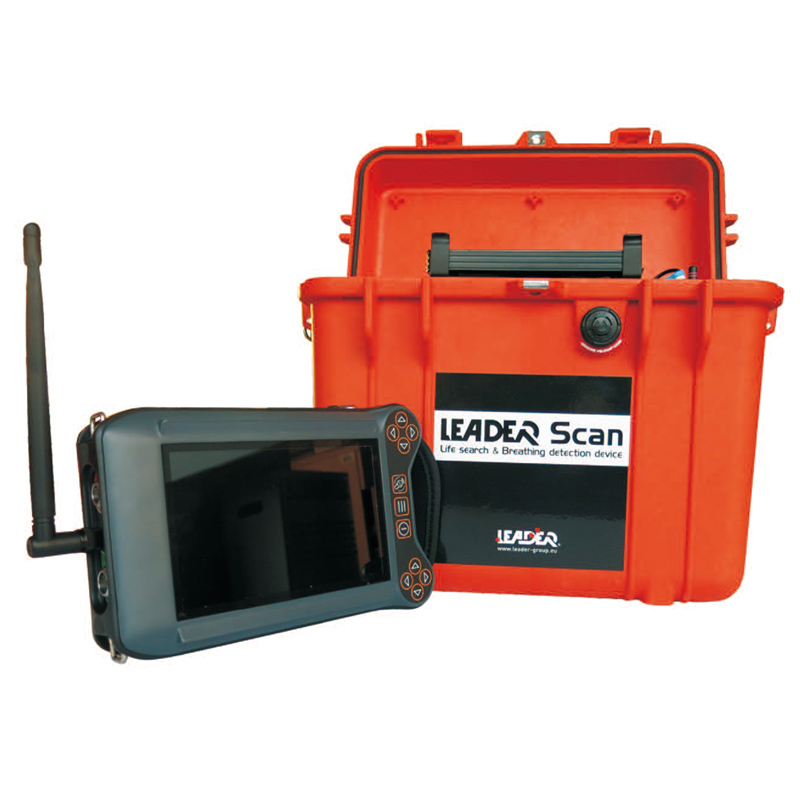

LEADER Scan detects the breathing or movement of the human body to search for trapped people and determine their positions at disaster sites such as earthquakes, building collapses, mudslides, avalanches, etc. It has the characteristics of advanced detection methods, high response sensitivity, high accuracy, and convenient use. Ultra-wideband radar life detector that can accurately detect breathing signals!
It is widely used in the task requirements of rapid search targets in emergency rescue scenes such as earthquake rescue and house collapse.
2. Product Features
1. Compact structure and light weight
2. The maximum detection range can reach 30 meters
3. The breathing signal can detect the maximum distance of 10 meters
4. Real-time signal search mode
5. Wireless or wired connection
6. Intuitive operation interface in Chinese version
7. Search and save image data at the same time
8. The controller can display the power of the radar sensor
9. Radar sensor battery is easy to replace
3. Product parameters
1. Detection distance: 30 meters for moving targets, 10 meters for stationary targets
2. Detection range: 1047 cubic meter cone can be detected in 30 seconds (user defined mode)
3. Detection accuracy: 1 meter (in ruins)
4. Detection opening angle: 90x90°
5. Radar operating frequency: UWB ultra-wideband radar technology; operating frequency range 400-1000MHz,
6. Center operating frequency 700MHz
7. Probe target response time: less than 2 seconds (user-defined mode)
8. Penetration performance: It can penetrate 200mm thick concrete walls and detect signals at a depth of 10 meters;
9. Medium setting: The medium to be penetrated can be automatically set according to the actual environment of the rescue site, without manual adjustment
10. Connection method: The host and the control box can be connected wirelessly (the wireless connection distance can reach 100 meters in the open area), or through the cable connection to adapt to the complex environmental requirements of the rescue site: for example, there is no wireless signal or the signal is too weak or too much interference, etc.;
11. Operating software: brand new Chinese interface; there are two search modes: automatic search and user-defined, and an expert mode (which can display the diameter, area and volume of the search area);
12. It also has a distance point waveform diagram: focus on the strongest signal in real time, so as to accurately determine the target detected in the search area;
13. Simultaneous search data can be stored synchronously, which is convenient for future research and analysis or regular training
14. Multi-target detection function: It can detect the signals of up to 10 living bodies at the same time, which is more in line with domestic rescue needs
15. Continuous working time: 5.5 hours for the radar host, 5 hours for the control box
16. Radar host size: 43X244X341mm; weight: 6.7 kg (including battery), the world‘s lightest
17. Packaging: The whole set of equipment is put into a backpack, and a waterproof and shockproof transport box is also included
18. Main configuration: radar host (including 2 rechargeable batteries), 7" self-developed control box (including 1 rechargeable battery and dry battery box), USB cable (for connecting the host and control box), battery charger
4. Display control terminal:
1. Compact structure and light weight
2. Broadband LCD
3. High Brightness Display
4. Chinese interface and intuitive function navigation
5. Running time: 5 hours with 2 batteries
6. Quickly replaceable rechargeable battery.
7. The battery can be used with LEADER S rch, LEADER Cam and LEADER Hasty controllers
8. The battery case adapter with 10 AAA dry batteries can be used continuously even when it cannot be charged.
5. Parameters of high-sensitivity UWB ultra-wideband radar sensor:
1. High-sensitivity UWB ultra-wideband technology.
2. Compact and light weight
3. Installed in a compact waterproof and shockproof case
4. Search distance Maximum search distance 30 meters
5. Accuracy of about 1 meter (waste collision)
6. real-time search mode
7. 2 search modes real-time search and automatic search (user-defined)
8. The longest use time of 2 sensor batteries is 8-10 hours
9. 2 connection methods: the first 30-meter wireless WIFI connection (wireless mode has no cable restrictions) the second 5-meter waterproof USB wired connection: a reliable connection method in the case of wireless interference in extreme environments
