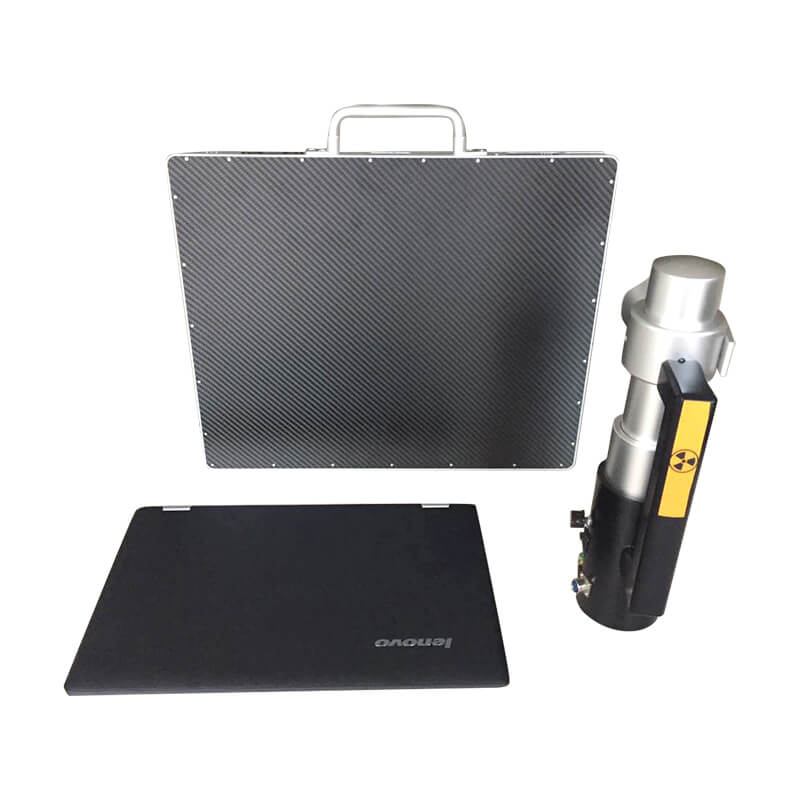

ZJSC-CB50 HD ultra-thin portable X-ray machine

1. Product introduction:
The high-definition ultra-thin portable X-ray inspection system is a very ultra-thin, lightweight and high-definition image quality X-ray imaging system, which is specially designed and developed by our company for special needs such as security inspection, EOD, and article identification.

2. Application scenario: Police officers and military field personnel conduct perspective observation on suspicious objects (guns, equipment, drugs, daggers, etc.) at the scene of security inspection, EOD, and investigation, and eliminate dangerous and harmful objects (explosives, explosive timing devices, etc.) Firearms and other control equipment) to increase the work efficiency of law enforcement personnel and reduce the risk factor of law enforcement personnel,

Forensic autopsy, to check whether there are foreign bodies in the corpse, and to determine the position when removing the foreign bodies in the muscles.

Technical investigation, customs, post and telecommunications, logistics security inspection, etc.

3. Product advantages:
1. HD: pixel point: 0.1mm, image resolution greater than: 2800X2300, much higher than similar products.
2. Ultra-thin: The imaging plate is 1.5cm, which can be used for safety inspection without moving suspicious objects in a small space;
3. Portability: The imaging board is only 3.4kg, which is very easy to carry in one hand.
4. Large screen, touch control, simple and convenient operation.

4. Technical parameters of imaging plate:
1. The effective area is greater than: 430mm x 350mm
2. Dimensions are less than: 460mmx380mmx15mm
3. Thickness is less than: 15mm
4. Weight less than: 3.5kg
5. Pixel size is less than: 160μm
6. Image resolution is greater than: 2800X2300
7. The bottom blind zone is no more than 20mm, and the left and right blindness is no more than 18mm.
8. Equipped with folding magnetic handle.
9. With battery power display, easy to charge, maintain and maintain.
10. Continuous working hours: 6 hours of continuous working time using rechargeable batteries; unlimited continuous working with AC power
11. Image dynamic range: 16 bits, 65536 gray levels
12. Synchronization method: F2AED or manual control
13. Wired communication: compatible with 100M and Gigabit Ethernet (GbitE)
14. Protective material: high-strength carbon fiber board

5. X-ray machine technical parameters
1. Weight: 2.3kg;
2. Power supply: rechargeable 16.8V lithium battery
3. X-ray source size: 356mmx160mmx90mm
4. Output voltage: 80KV constant current;
5. X-ray penetration: can penetrate 60mm aluminum plate.
6. X light source focus size: Φ0.5mm;
7. Wired and wireless control

6. Software and notebook parameters:
1. Full-screen touch operation, zoom in, zoom out, grayscale, brightness and other image processing adjustments can be achieved through the opening and closing operations of the fingers.
2. Various processing functions such as mirroring and anyway
