1. Product overview:
ST 031M "PIRANHA" is a handheld wireless anti-eavesdropping detector. The product adopts the latest microelectronic anti-detection technology, which can detect and locate hidden transmitters (bugs), wireless microphones and GSM phone signals in various situations, and provide professional-level radio wave scanning. The product is equipped with a 12-key operating keyboard and a color display screen to display the results. The scanable frequency range is from 0.02KHz to 4.5GHz. It is simple to operate and easy to use. It is a professional and practical product.
2. Features:
ST 031M can operate in a variety of modes, such as:
1) Selective high-frequency electronic signal detection mode (frequency range: 140∽4500MHz)
2) Wired scanning analysis mode (frequency range: 0.05∽30MHz)
3) Low frequency signal amplification analysis mode (frequency range: 0.02∽100KHz)
Special software can:
1) Transfer the information on the ST 031M monitor to the computer screen.
2) During the real-time operation of ST 031M, create image and audio files, or extract data from ST 031M‘s non-volatile memory.
3) When the instrument is working in high frequency detector mode/frequency meter mode/electronic scanning analyzer mode, the scanning receiver can be flexibly switched. The conversion is mainly to adjust the receiving frequency of the scanning receiver to match the received signal frequency.
4) ST 031M is light and easy to carry. When using or storing, use a special carrying case.

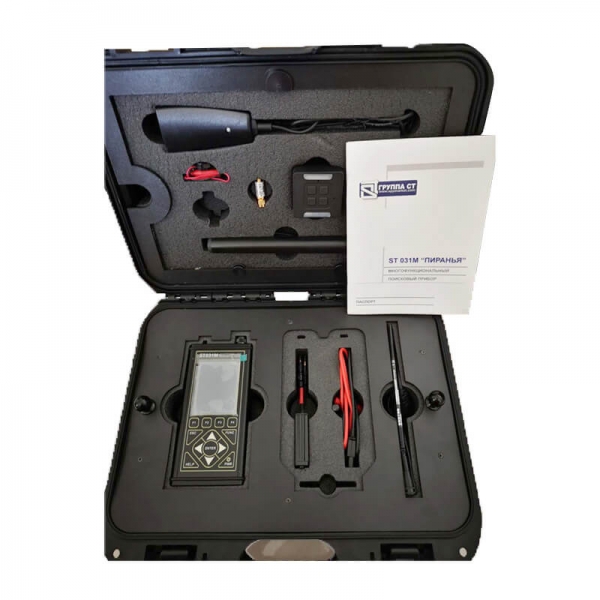

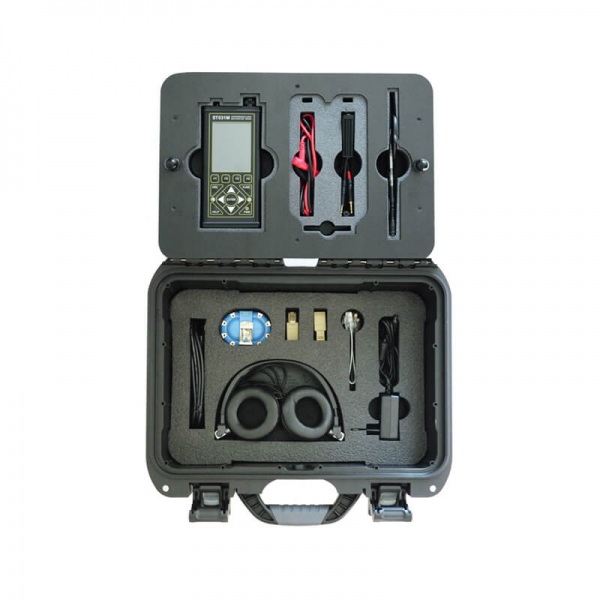

3. Product composition:

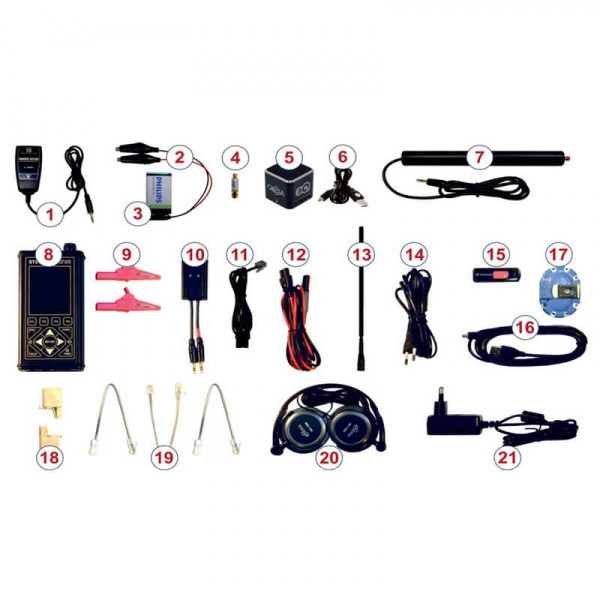

ST-031M delivery kit includes:
1. Ultra-high frequency sensor (UWBD031M) 1
2. Wire differential connector 2 pcs
3. Battery (to supply power to the wire differential connector) 1
4. Attenuator 1
5. Sound test transmitter 1
6. Connecting cable of sound device 1
7. Induction converter (magnetic field sensor) 1
8. Host 1
9. "Crocodile" type clamp type clamp 2 pcs
10. Multi-purpose adapter for checking electric wires-1 BWLC031M
11. 1 cable for connecting the BWLC031M adapter to the telephone line
12. Multi-purpose cable, used to connect the BWLC031M adapter to 1 wire
13. 1 high-frequency telescopic antenna
14. The cable connecting the BWLC031M adapter to the power socket is used to scan the receiver CH2 1
15. 1 flash drive with software
16. 1 cable for connecting to PC
17. 1 set of adapter used to connect the BWLC031M adapter to the multi-wire cable
18. Telephone adapter 2
19. RG45 type cable connector: 8х4; 8х6; 8х8 3
20. Earphone 1
21. Charger 1
22. 1 handbag
23. User manual 1 set
